CombiProbe 2 for dsPIC Dual Core (PACK)
OVERVIEW
CombiProbe 2 for dsPIC Dual Core (PACK)
Product number:
LA-3084

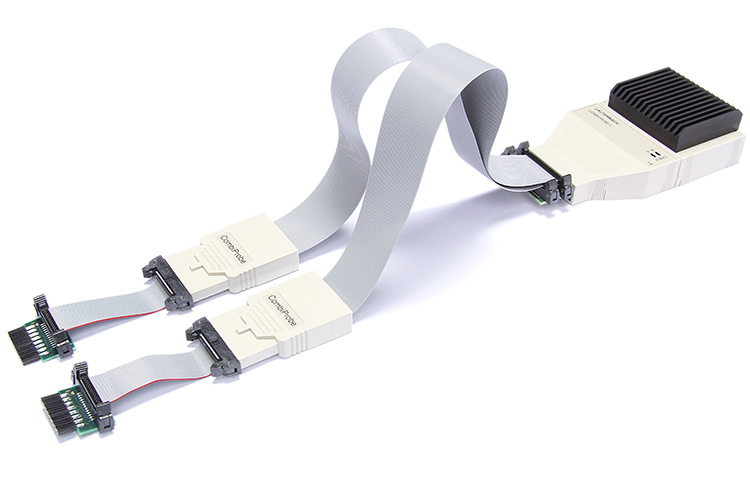

CombiProbe with two whisker cables
to debug dual-core dsPIC controller from Microchip.
Supports dsPIC33A, dsPIC33C, and dsPIC33E.
Requires the following A-license:
LA-2760A (Debugger for PIC Additional)
LA-7960X (License for Multicore Debugging).
Requires one of the following debug base modules:
PowerDebug X-Series, PowerDebug E-Series
PowerDebug PRO, PowerDebug II, PowerDebug USB 3.

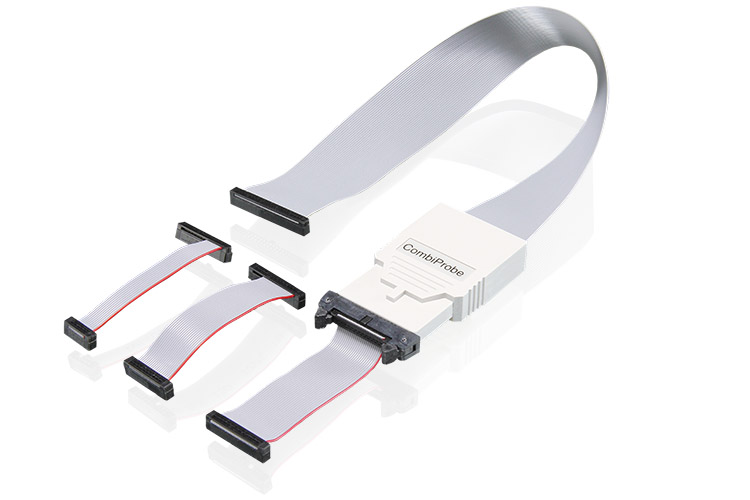

Includes two Debug Whisker with 26 pin connector (1.8V to 5.0V).

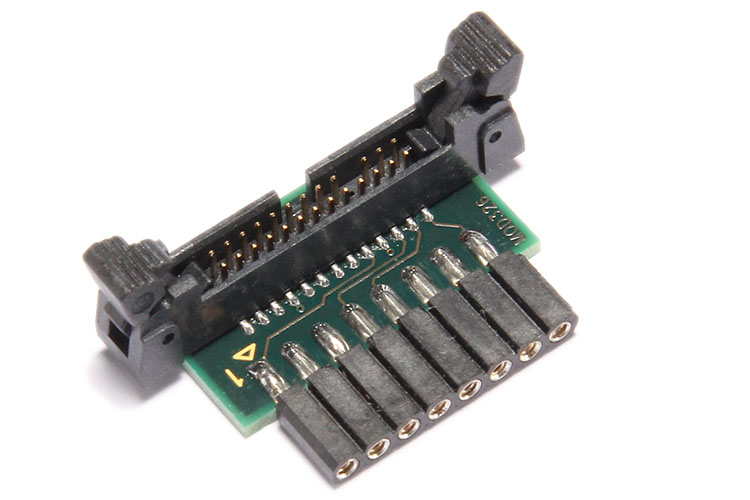

Includes Converter to MICROCHIP-8 header.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the CombiProbe 2 for dsPIC Dual Core (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A Synopsys ASIP Core Debug License (Nodelocked)
- LA-3743A Armv8/v9-A/R Debug License (Nodelocked)
- LA-3776A Intel x86/x64 Debug License (Nodelocked)
- LA-7837A Nios® II Debug License (Nodelocked)
- LA-7760A MIPS32 Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-2760A dsPIC Debug License (Nodelocked)
- LA-2751A JTAG Debugger for STRED Add.
- LA-3730A MicroBlaze Debug License (Nodelocked)
- LA-7960X License for Multicore Debugging
- LA-3712A ZSP500 Debug License (Nodelocked)
- LA-7746A ARM7 Debug License (Nodelocked)
- LA-7838A C6000 Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3711A Ceva-X Debug License (Nodelocked)
- LA-7844A Cortex-M Debug License (Nodelocked)
- LA-7742A ARM9 Debug License (Nodelocked)
- LA-7847A C2000 Debug License (Nodelocked)
- LA-7843A Armv7-A/R Debug License (Nodelocked)
- LA-2540A RISC-V 32-bit Debug License (Nodelocked)
- LA-2756A JTAG Debugger for PRU Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-2759A C7000 Debug License (Nodelocked)
- LA-7756A TriCore Debug License (Nodelocked)
- LA-2541A RISC-V 64-bit Debug License (Nodelocked)
- LA-7765A ARM11 Debug License (Nodelocked)
- LA-3741A Hexagon Debug License (Nodelocked)
