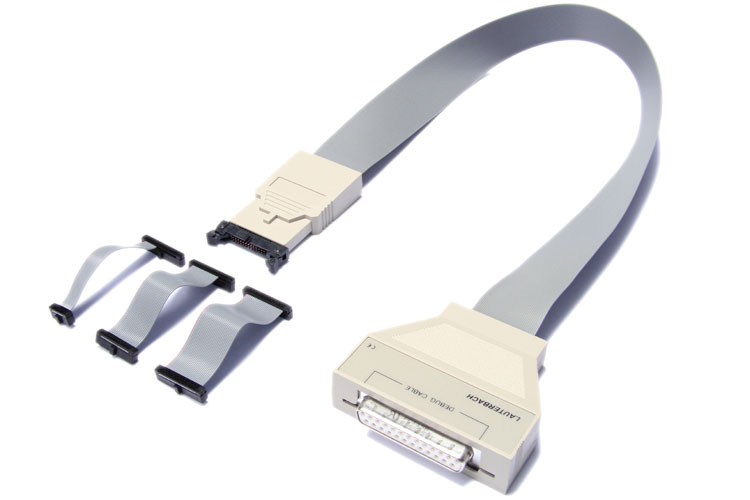

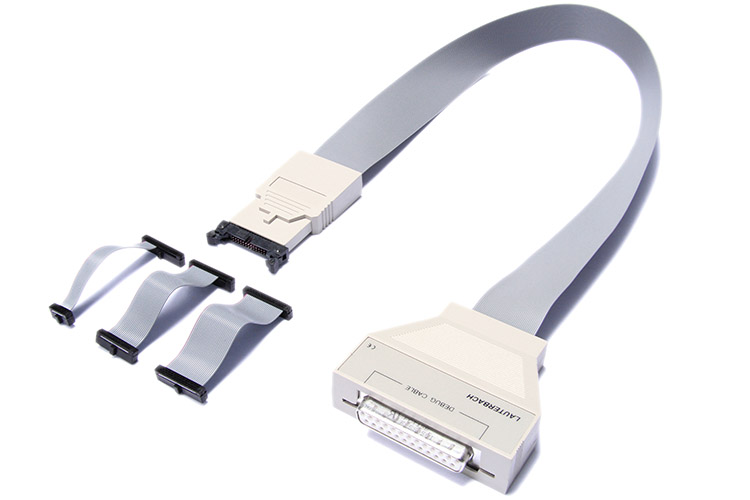

AUTO26 Debug Probe with TriCore License
AUTO26 Debug Probe with TriCore License
Supports TriCore, PCP and GTM debugging included.
Supports JTAG, DAP, DXCPL, DXCM.
Supports DAP streaming under certain conditions (see below).
Includes the TRACE32 software for Windows, Linux and macOS
on DVD and for download.
Requires PowerDebug debug base module from 2004 and newer.
(Works with all PowerDebug except Gen 1 (LA-7702 & LA-7704).)

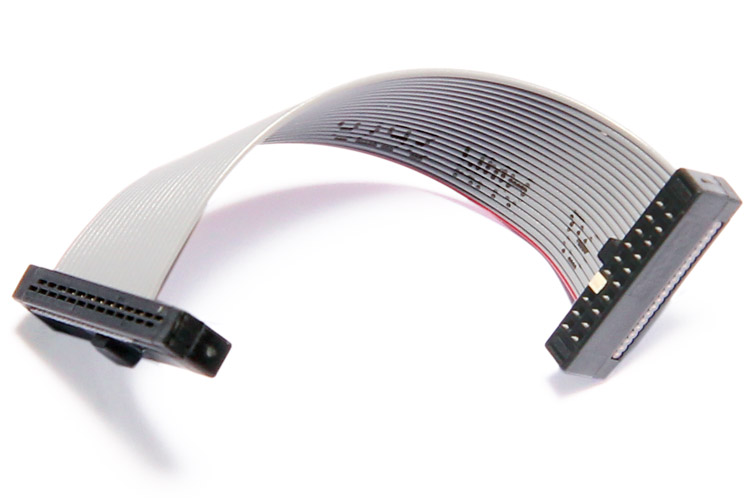

Requires LA-3849 if 16 pin JTAG (TriCore) connector is used.
DAP Streaming is supported if you use the device with a
PowerDebug PRO, E40, or X50 and your PowerView software is version
R.2023.09 or newer (build 160619 or higher).
If these requirements are met, DAP Streaming is possible only in
DAP mode (DAP2, DAP3, DAPWide, DAP4).
For performance reasons, we recommend DAPWide at 160 MHz (for a
transfer rate of 320 Mbit/s).
Trace display and analysis (based on DAP streaming, onchip-buffers,
or a PowerTrace) requires LA-3799X (Trace License for TriCore ED).
For DXCPL/DXCM you will probably also need the CAN-Box (LA-3889).
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the AUTO26 Debug Probe with TriCore License
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Armv8/v9-A/R Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-2760A dsPIC Debug License (Nodelocked)
- LA-3732A XC800 Debug License (Nodelocked)
- LA-3730A MicroBlaze Debug License (Nodelocked)
- LA-7960X License for Multicore Debugging
- LA-7838A C6000 Debug License (Nodelocked)
- LA-7753A MPC5xxx Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3799X Trace License for TriCore ED
- LA-3711A Ceva-X Debug License (Nodelocked)
- LA-3719A RH850 Debug License (Nodelocked)
- LA-7844A Cortex-M Debug License (Nodelocked)
- LA-7847A C2000 Debug License (Nodelocked)
- LA-7843A Armv7-A/R Debug License (Nodelocked)
- LA-2540A RISC-V 32-bit Debug License (Nodelocked)
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A C7000 Debug License (Nodelocked)
- LA-2541A RISC-V 64-bit Debug License (Nodelocked)
- LA-2900X License for PIL Simulation (Cable)
