JTAG Debugger for Arm11 (ICD)
OVERVIEW
JTAG Debugger for Arm11 (ICD)
Product number:
LA-7765
Out of production
supports Arm11 (0.4 V - 5 V)

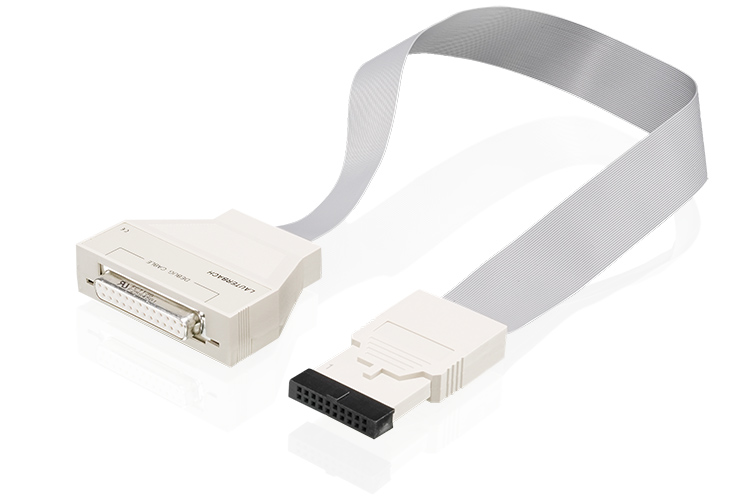

IDC20A debug cable supports 5-pin standard JTAG, cJTAG and
Serial Wire Debug Port, (0.4 V - 5 V)
includes software for Windows, Linux and MacOSX
requires Power Debug Module
cJTAG and SWD require
Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, PowerTrace, Power Debug II
or PowerDebug PRO
This product is discontinued and not available for purchase.
LA-3252 IDC20A Debug Probe with ARM11 License
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for Arm11 (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7746X ARM7 Debug License (Nodelocked) Ext.
- LA-3778A JTAG Debugger License for APS Add.
- LA-7845A StarCore Debug License (Nodelocked)
- LA-7844X Cortex-M Debug License (Nodelocked) Ext.
- LA-7760A MIPS32 Debug License (Nodelocked)
- LA-7830A C5500 Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-7832A ZSP400 Debug License (Nodelocked)
- LA-7762X XScale Debug License (Nodelocked) Ext.
- LA-7789A JTAG Debugger for TeakLite/OAK SEIB (ICD)
- LA-7831A C5400 Debug License (Nodelocked)
- LA-3747A UBI32 Debug License (Nodelocked)
- LA-7817A JTAG Debugger License for SH2/SH3/SH4 Add.
- LA-7742X ARM9 Debug License (Nodelocked) Ext.
- LA-7960X License for Multicore Debugging
- LA-3712A ZSP500 Debug License (Nodelocked)
- LA-7838A C6000 Debug License (Nodelocked)
- LA-7843X Armv7-A/R Debug License (Nodelocked) Ext.
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3756A AndesCore™ V3/V2 Debug License (Nodelocked)
- LA-3711A Ceva-X Debug License (Nodelocked)
- LA-7847A C2000 Debug License (Nodelocked)
- LA-7744X ARM10 Debug License (Nodelocked) Ext.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-7970X Trace License for Arm (Debug Cable)
- LA-3743X Armv8/v9-A/R Debug License (Nodelocked) Ext.
- LA-3844A JTAG Debugger for TeakLite-4 Add. (ICD)
- LA-3741A Hexagon Debug License (Nodelocked)
- LA-3774A TeakLite-III Debug License (Nodelocked)
- LA-2900X License for PIL Simulation (Cable)
