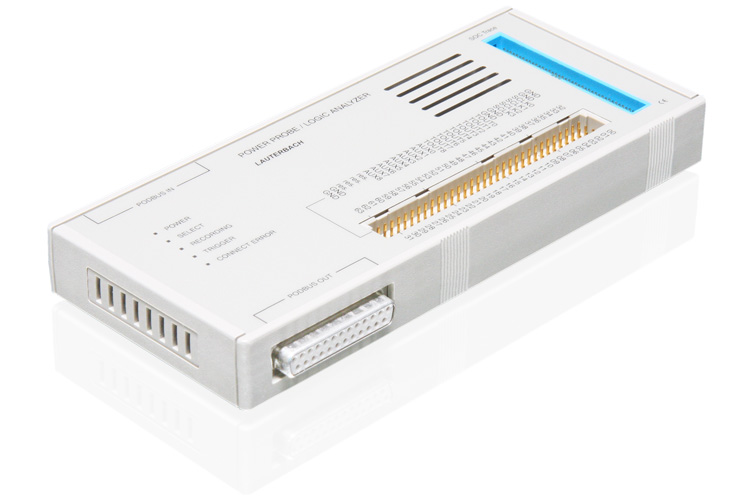

ICD PowerProbe State-Timing Analyzer 256K
OVERVIEW
ICD PowerProbe State-Timing Analyzer 256K
Product number:
LA-7931
Not recommended for new projects
Logic Analyzer Extension for PowerDebug modules.
64 Channels 100 MHz, 32 Channels 200 MHz, 16 Channels 400 MHz.
Transient Recording, 256 KFrames, 48 Bit Time-Stamp.
Trigger Filter, Trigger Delay, etc.,
Complex Trigger: 8 Trigger Events, 4 Trigger Levels, 3 Counters (45 bit).
50 MHz Pattern Generator (9 bit),
Requires PowerDebug module (ot other PodBus master).
Use this product in existing projects only. For new projects please order the superseded product.
Superseded by LA-2500 Mixed-Signal Probe CombiProbe2/MicroTrace/PT
