Debugger for MPC5xxx Automotive PRO
OVERVIEW
Debugger for MPC5xxx Automotive PRO
Product number:
LA-2708
Out of production
supports Qorivva MPC5xxx/SPC5xxx (e200 cores)
and Freescale PX SERIES processors
eTPU, GTM and SPT debugging included
Concurrent debugging of multiple e200 cores on
multicore processors requires a
License for Multicore Debugging (LA-7960X)
(not necessary for lockstep mode)
includes software for Windows, Linux and MacOSX

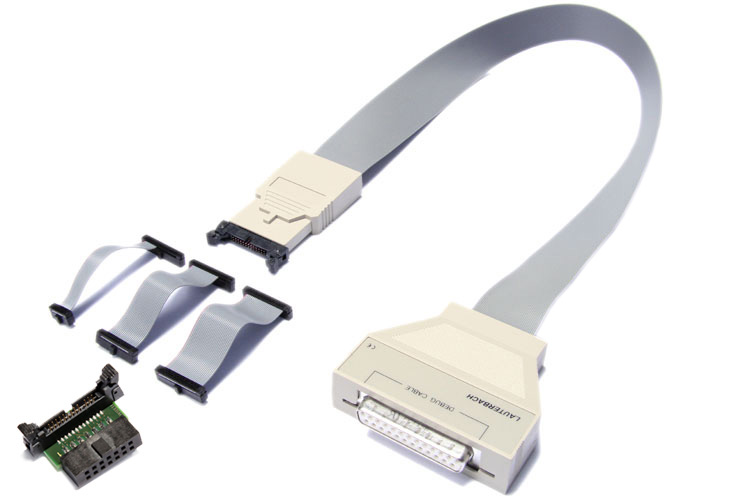

AUTO26 debug cable
requires
Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, Power Trace Ethernet,
Power Debug II or PowerDebug PRO

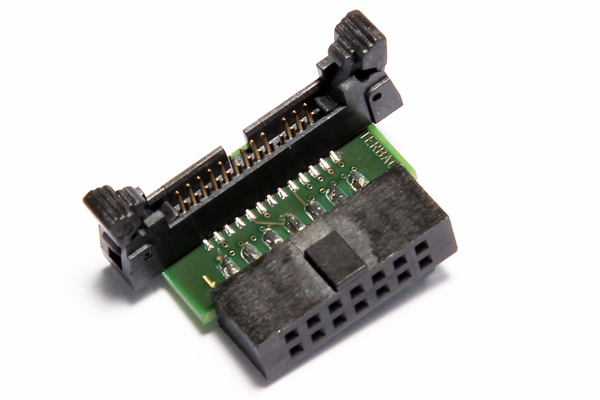

includes LA-3873 (Conv. AUTO26 to JTAG14 OnCE)
voltage range 0.9V to 5.5V
This product is discontinued and not available for purchase.
LA-3206 AUTO26 Debug Probe with MPC5xxx License
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
LA-3873
Compatible Hardware
Required Modules for Debugger for MPC5xxx Automotive PRO
One of the following modules is required
Add-ons
Extend the Debugger for MPC5xxx Automotive PRO
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
