Debugger for Armv7-A/R IDC20A (PACK)
OVERVIEW
Debugger for Armv7-A/R IDC20A (PACK)
Product number:
LA-3253

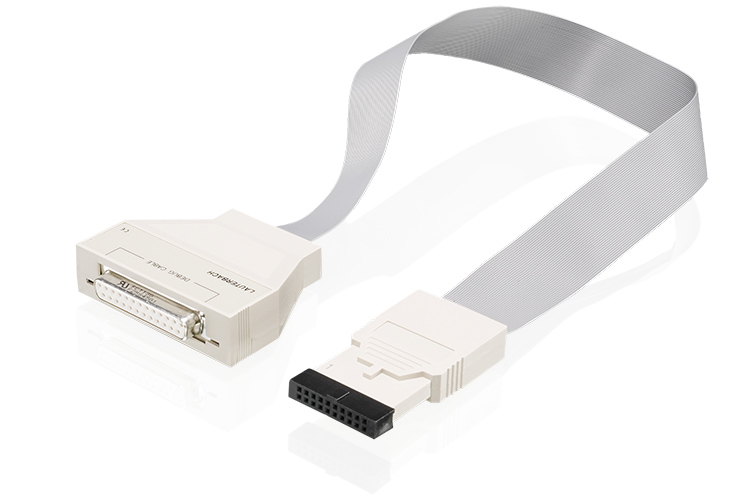

IDC20A Debug Probe with debug license
to debug Armv7 based Cortex-A/R cores,
via JTAG, cJTAG (IEEE 1149.7), Serial Wire Debug (SWD).
Includes licenses to debug Armv7 based
Cortex-A 32-bit cores and Cortex-R 32-bit cores,
as well as GTM and IPU cores.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
With legacy debug modules LA-7702/LA-7704 only JTAG is supported.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Debugger for Armv7-A/R IDC20A (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A JTAG Debugger for Synopsys ASIP Cores Add.
- LA-7746X JTAG Debugger Extension for Arm7
- LA-7837A Debug License for Nios® II Add.
- LA-3778A JTAG Debugger License for APS Add.
- LA-2772A JTAG Debugger for SDMA Add.
- LA-7845A JTAG Debugger License for StarCore 20 Pin Add
- LA-7844X Debugger for Cortex-M (Armv6/7/8-M) Ext.
- LA-7760A Debugger License for MIPS32 Add.
- LA-7830A Debug License for C5500 DSP Add.
- LA-3750A Debug License for ARC® 32-bit Add.
- LA-7832A JTAG Debugger for ZSP400 DSP Core Additional
- LA-7759A OCDS Debugger for XC2000/C166S V2 Additional
- LA-3730A Debug License for MicroBlaze Additional
- LA-7762X JTAG Debugger Extension for XSCALE (ICD)
- LA-7831A Debug License for C5400 DSP Add.
- LA-3747A JTAG/SPI Debugger License for UBI32 Add.
- LA-2705A JTAG Debugger for ARP32 Add.
- LA-7817A JTAG Debugger License for SH2/SH3/SH4 Add.
- LA-2757A JTAG Debugger for Mico32 Add.
- LA-7742X JTAG Debugger Extension for Arm9
- LA-3749A Debug License for VSPA Add.
- LA-7960X License for Multicore Debugging
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7838A Debug License for C6000 Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-3756A Debug License for AndesCore™ V3/V2 Add.
- LA-3711A Debug License for CEVA-X Add.
- LA-7847A Debug License for C2000 Add.
- LA-7744X JTAG Debugger Extension for ARM10
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-7970X Trace License for Arm (Debug Cable)
- LA-2758A JTAG Debugger for META Add.
- LA-2759A Debug License for C7000 Add.
- LA-3743X Debugger for Armv8/Armv9-A/R/X Ext.
- LA-7765X JTAG Debugger Extension for Arm11
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-3844A JTAG Debugger for TeakLite-4 Add. (ICD)
- LA-3741A Debug License for Hexagon Add.
- LA-3774A JTAG Debugger for TeakLite III Add. (ICD)
- LA-2900X License for PIL Simulation (Cable)
- LA-3744A JTAG Debugger Lic. for APEX ADD.
