IDC20A Debug Probe with Armv8/v9-A/R License
OVERVIEW

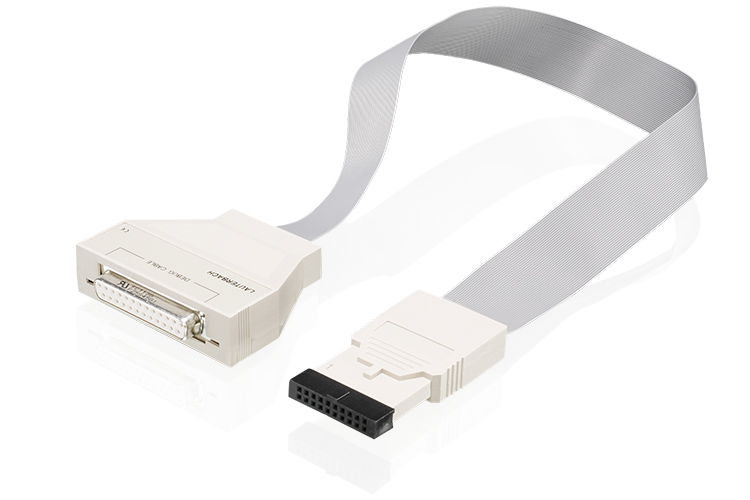

IDC20A Debug Probe with Armv8/v9-A/R License
Product number:
LA-3255
IDC20A Debug Probe with debug license
to debug Armv8 and Armv9 based Cortex-A/R/X cores,
via JTAG, cJTAG (IEEE 1149.7), Serial Wire Debug (SWD).
Includes licenses to debug Armv8 and Armv9 based
Cortex-A, Cortex-R, Cortex-X and Neoverse 32/64-bit cores,
as well as GTM, SPT and IPU cores.
Multicore debugging is included.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
With legacy debug modules LA-7702/LA-7704 only JTAG is supported.
Voltage range 0.4V to 5.0V.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the IDC20A Debug Probe with Armv8/v9-A/R License
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A Synopsys ASIP Core Debug License (Nodelocked)
- LA-7746X ARM7 Debug License (Nodelocked) Ext.
- LA-7837A Nios® II Debug License (Nodelocked)
- LA-2772A SDMA Debug License (Nodelocked)
- LA-7845A StarCore Debug License (Nodelocked)
- LA-7844X Cortex-M Debug License (Nodelocked) Ext.
- LA-7760A MIPS32 Debug License (Nodelocked)
- LA-7830A C5500 Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-7759A XC2000/C166S V2 Debug License (Nodelocked)
- LA-3730A MicroBlaze Debug License (Nodelocked)
- LA-7762X XScale Debug License (Nodelocked) Ext.
- LA-7831A C5400 Debug License (Nodelocked)
- LA-7848A M8051EW Debug License (Nodelocked)
- LA-3747A UBI32 Debug License (Nodelocked)
- LA-2705A JTAG Debugger for ARP32 Add.
- LA-7817A JTAG Debugger License for SH2/SH3/SH4 Add.
- LA-2757A JTAG Debugger for Mico32 Add.
- LA-7742X ARM9 Debug License (Nodelocked) Ext.
- LA-3749A VSPA Debug License (Nodelocked)
- LA-7838A C6000 Debug License (Nodelocked)
- LA-7843X Armv7-A/R Debug License (Nodelocked) Ext.
- LA-7761A MIPS64 Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-3711A Ceva-X Debug License (Nodelocked)
- LA-7847A C2000 Debug License (Nodelocked)
- LA-7744X ARM10 Debug License (Nodelocked) Ext.
- LA-2540A RISC-V 32-bit Debug License (Nodelocked)
- LA-2756A JTAG Debugger for PRU Add.
- LA-7970X Trace License for Arm (Debug Cable)
- LA-2759A C7000 Debug License (Nodelocked)
- LA-7765X ARM11 Debug License (Nodelocked) Ext
- LA-2541A RISC-V 64-bit Debug License (Nodelocked)
- LA-3741A Hexagon Debug License (Nodelocked)
- LA-2900X License for PIL Simulation (Cable)
- LA-3744A APEX Debug License (Nodelocked)
