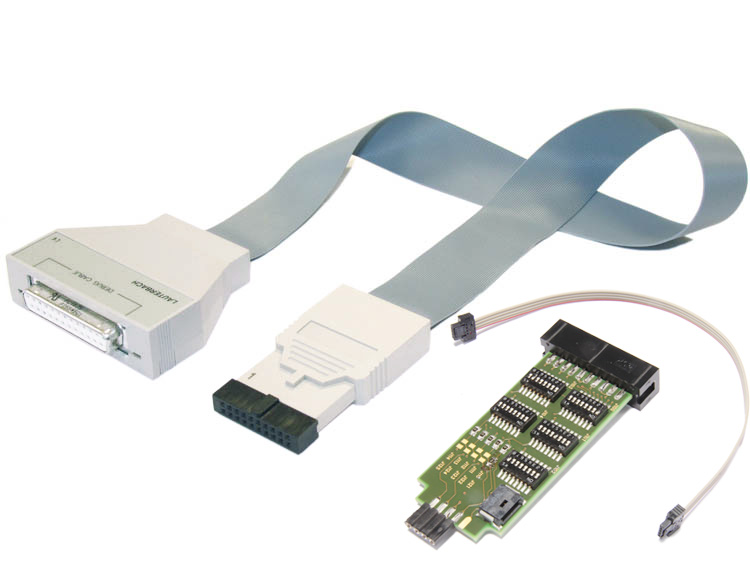

IDC20A Debug Probe with STM8 License

IDC20A Debug Probe with STM8 License
OVERVIEW

IDC20A Debug Probe with STM8 License

Product number: LA-3266
New Product

IDC20A debug probe for UBI32 processing engines
usable with a PowerDebug base module.

Includes licenses to debug UBI32 processing engines.
Includes license for multicore debugging.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Includes an adapter for connecting the debug probe to a
target with a 4-pin STM8 connector.

Requires a PowerDebug base module.

This product can be ordered now.
Product Details

Technical Information

Technical Data

Pinout Specification

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information
STM8 Debug License (tool locked) STM8 Debug License (tool locked)
LA-2719A

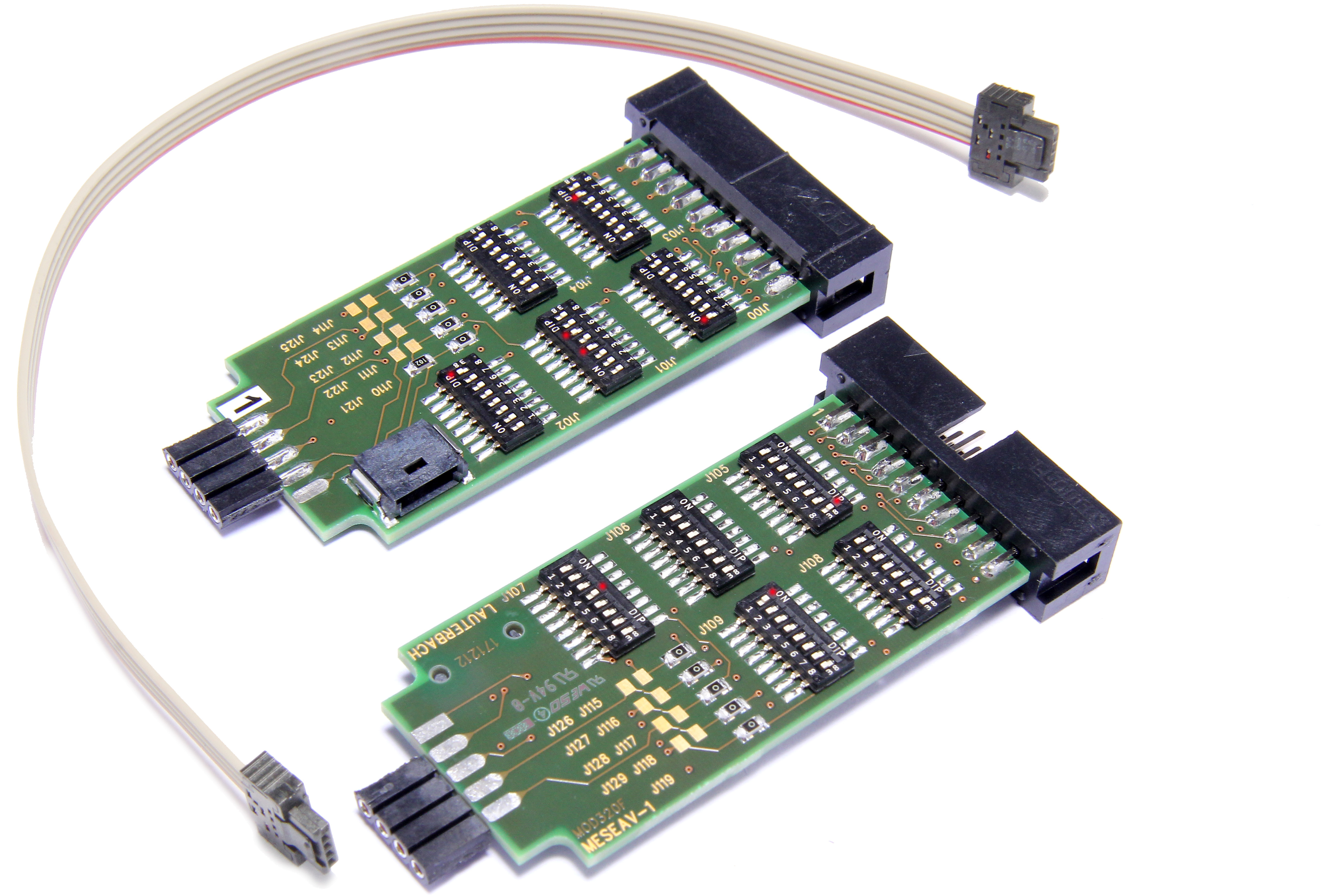

Converter IDC20A to STM8 4-Pin Connector Converter IDC20A to STM8 4-Pin Connector
LA-2731
IDC20A Debug Probe V5 IDC20A Debug Probe V5 See pinout specifications
LA-3000
See pinout specifications
Add-ons

Extend the IDC20A Debug Probe with STM8 License

Allowed Licenses

The following licenses can be added to the product to support debug and/or tracing of other core architectures.
