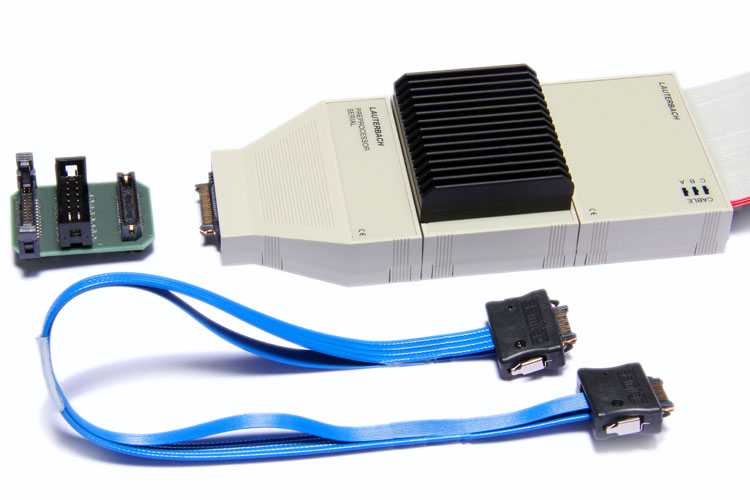

Trace for TriCore via Serial PrePro (PACK)
OVERVIEW
Trace for TriCore via Serial PrePro (PACK)
Product number:
LA-3304

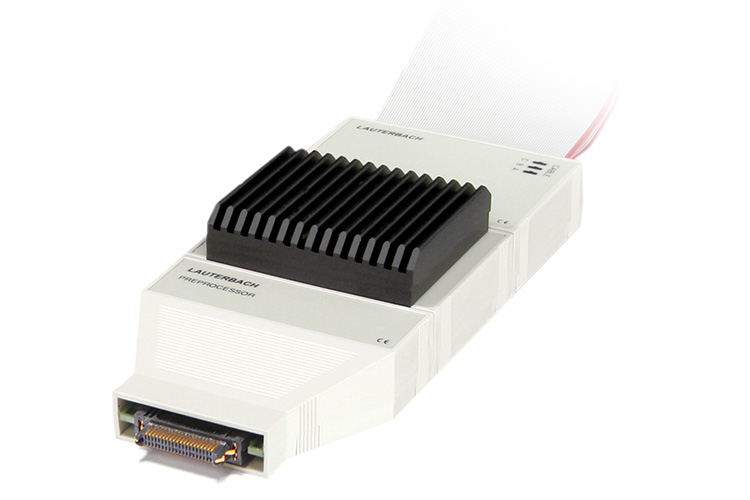

Preprocessor for TriCore AGBT/SGBT Trace
(Aurora high-speed trace).
Full support via PowerTrace III and PowerTrace II
with the following speed per lane:
4 lanes @ 4.25 Gbps,
3 lanes @ 6.00 Gbps,
2 lanes @ 6.25 Gbps,
1 lane @ 6.25 Gbps.
Limited support via PowerTrace PX and PowerTrace Ethernet.
with the following speed per lane:
4 lanes @ 1.25 Gbps,
2 lanes @ 2.50 Gbps.
PowerTrace Ethernet must have serial number E04xxxxxxxx or higher.
Voltage range 0.15V to 1.25V.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for TriCore via Serial PrePro (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3943A Trace Licence RH850 HF
- LA-2754A Trace License for Xtensa® (AF-II/PTS)
- LA-7968A Trace License Qorivva MPC57xx and SPC57x/58x
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7967A Trace License for QorIQ PowerPC (PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-2901A Trace License for VSPA (AF-II/PTS)
- LA-7970A Trace License for Arm (AF-II/PTS)
