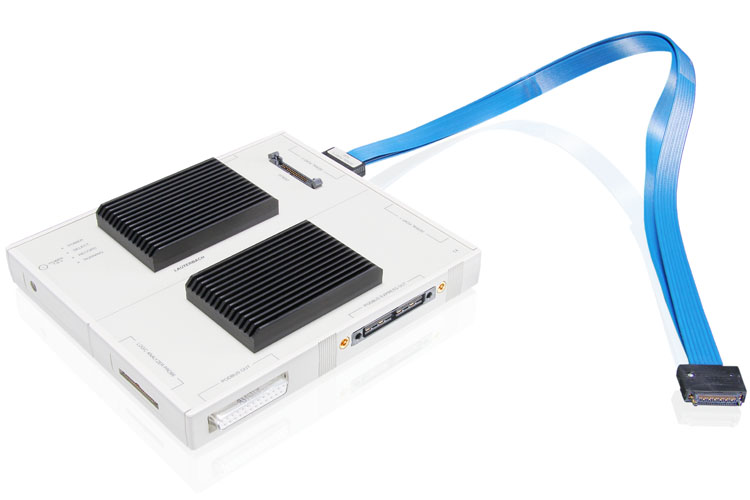

PowerTrace Serial 4 GigaByte QorIQ PowerPC
OVERVIEW
PowerTrace Serial 4 GigaByte QorIQ PowerPC
Product number:
LA-3570
Out of production
Serial Trace Port Controller with 4 Giga Byte Trace Memory
for QorIQ PowerPC
converters for Samtec22 or Samtec46 have to be
ordered separately if required
requires PowerDebug II Ethernet or PowerDebug PRO
Host requirements:
USB 3.0 or 1000 MBit Ethernet interface,
4.0 GigaByte RAM
voltage range 0.15V to 1.25V
This product is discontinued and not available for purchase.
LA-3329 Trace for QorIQ PowerPC via PTS 8GB (PACK)
LA-3328 Trace for QorIQ PowerPC via PTS 4GB (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the PowerTrace Serial 4 GigaByte QorIQ PowerPC
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
Available Converters
- LA-3831 Conv. Samtec40/COP16 to Samtec46 PowerOrg
- LA-3830 Conv. Samtec40/COP16 to Samtec70 PowerOrg
- LA-3529 PCIe Gen 4 Preprocessor for PowerTrace Serial
- LA-3524 PTSERIAL-PCIe-Gen3 x4 Slot-Card-Adapter
- LA-3832 Conv. Samtec40/COP16 to Samtec22 PowerOrg
- LA-3525 PTSERIAL-PCIe-Gen3 x8 Slot-Card-Adapter
- LA-3526 PTSERIAL-MiniPCIe-Gen3 x1 Slot-Card-Adapter
- LA-3590 OCuLink Trace Adapter for PowerTrace Serial
- LA-3527 PTSERIAL-PCIe-Gen3 x1 Slot-Card-Adapter
