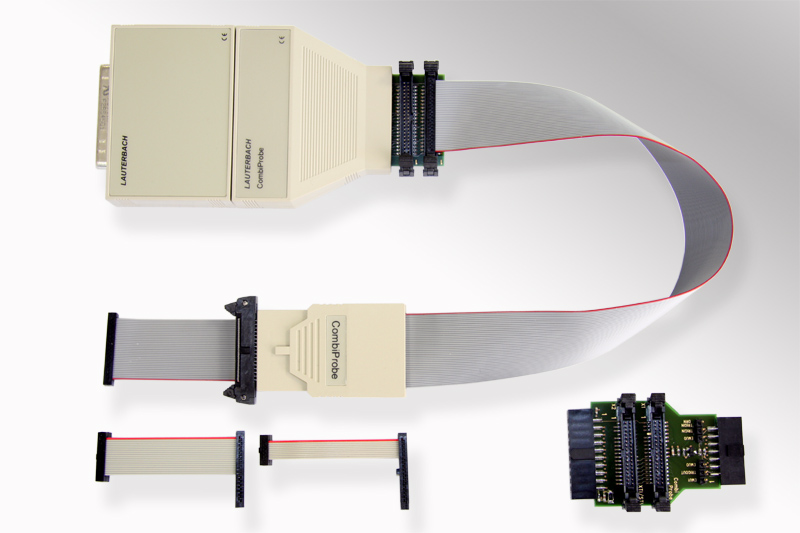

CombiProbe ARM-Debugger and 4-Bit Trace

Product number: LA-4502
Out of production

Debug cable and 128-MByte of trace memory

Supports Standard-JTAG, cJTAG and
Serial Wire Debug Port

Bandwidth of 200 MBit/s per trace channel

requires at least one of the following A-licenses:
LA-7742A (JTAG Debugger License for ARM9 Add.)
LA-7746A (JTAG Debugger License for ARM7 Add.)
LA-7765A (JTAG Debugger License for ARM11 Add.)
LA-7843A (JTAG Debugger License for CORTEX-A Add.)
LA-7844A (JTAG Debugger License for CORTEX-M Add.)

Trace support (up to 4-bit) included:
- MIPI System Trace
- ITM via Serial Wire Output/TPIU
- ETM Cortex-M continuous mode via TPIU

Supports the following trace licenses:
LA-7970X (Trace License for the ARM Architecture)

requires Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, PowerTrace, Power Debug II
or Power Debug PRO

5V tolerant inputs; max. output level 3.3V

This product is discontinued and not available for purchase.
LA-3083 CombiProbe 2 for MIPI34 (PACK) LA-3080 CombiProbe 2 for MIPI20T-HS (PACK)
Product Details

Technical Information

Technical Data

Pinout Specification
Download Dimensions

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information
MIPI-Half-Size-Cable 34-10 MIPI-Half-Size-Cable 34-10
LA-1937
MIPI-Half-Size-Cable 34 MIPI-Half-Size-Cable 34
LA-1939
Converter MIPI-34 to IDC20A/TI-14 Converter MIPI-34 to IDC20A/TI-14 See pinout specifications
LA-3771
See pinout specifications
MIPI-Half-Size-Cable 34-20 MIPI-Half-Size-Cable 34-20
LA-1938
Add-ons

Extend the CombiProbe ARM-Debugger and 4-Bit Trace
