NEXUS Debug/Trace for Qorivva MPC5xxx/SPC5xxx
NEXUS Debug/Trace for Qorivva MPC5xxx/SPC5xxx

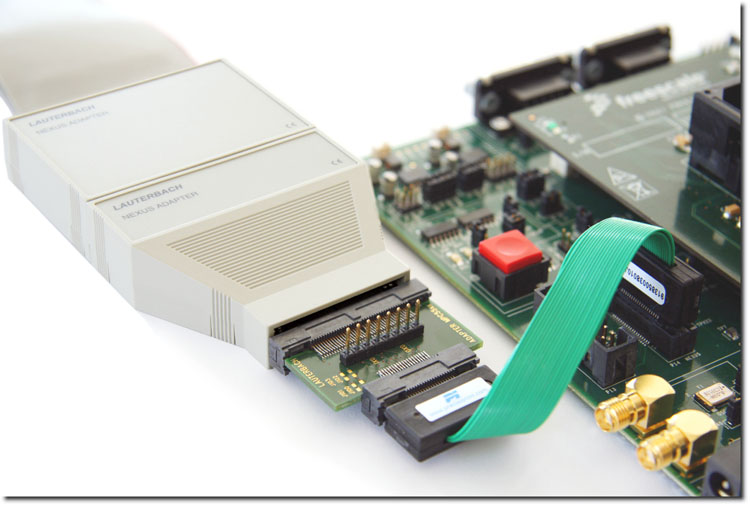

Parallel NEXUS Adapter with AutoFocus technology
for Qorivva MPC5xxx/SPC5xxx and PX series.
Includes debugger for eTPU and GTM.
Concurrent debugging of multiple e200 cores on
multicore processors requires a
License for Multicore Debugging (LA-7960X)
(not necessary for lockstep mode).
Voltage range:
1..5 V
TRACE port:
2..16 MDO (data) lines
1..2 MSEO (control) lines
Data Bandwidth:
up to 200 MBit/s
76-pin mictor connector requires one of the
following converters:
LA-7631 with cable to Mictor 38,
LA-7633 angled to Mictor 38,
LA-7632 to Glenair 51,
LA-7636 to SAMTEC 50,
LA-7637 to SAMTEC 20.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires PowerTrace hardware.
Usage with PowerTrace III requires
TRACE32 software DVD 2021/09 or newer.
Please contact Lauterbach if the serial number of
your PowerTrace is lower than E03010003982.
Technical Information
Technical Data
Extend the NEXUS Debug/Trace for Qorivva MPC5xxx/SPC5xxx
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
