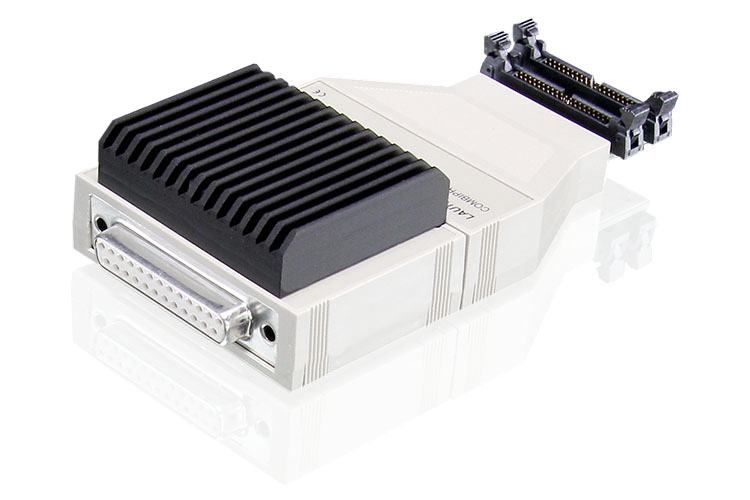

Package for CombiProbe 2 dsPIC Dual Core
OVERVIEW
Package for CombiProbe 2 dsPIC Dual Core
Product number:
LA-2762
Out of production

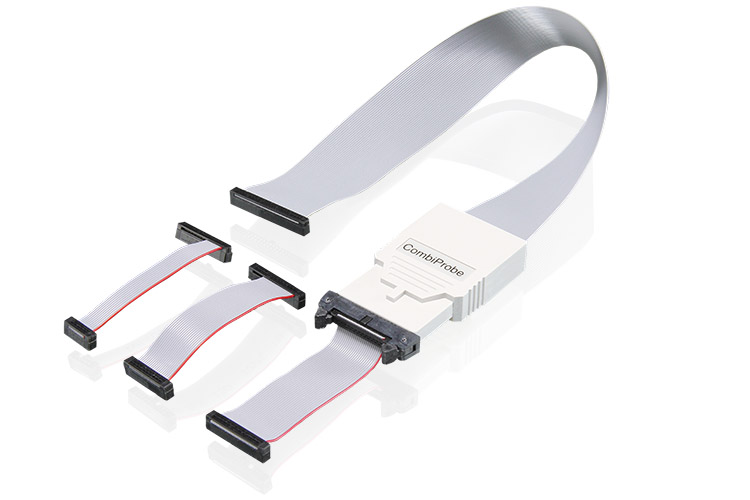

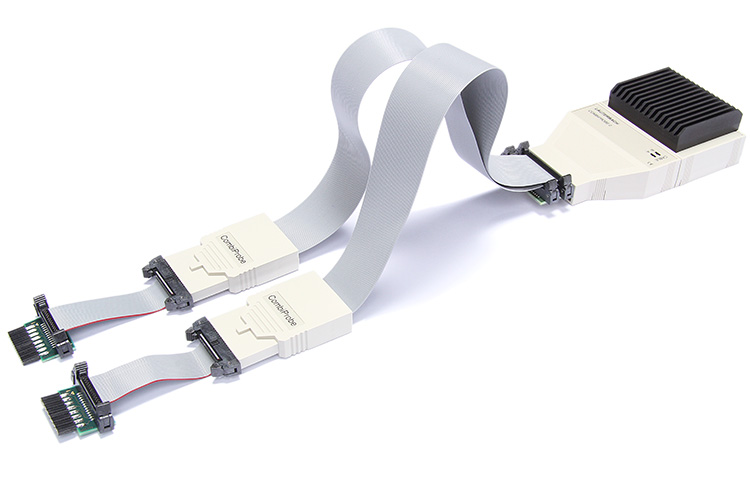

Two whisker cables to support dual core debugging
26-pin Automotive Connector
requires the following A-license:
LA-2760A (Debugger for PIC Additional)
LA-7960X (License for Multicore Debugging )
requires Power Debug Interface USB 3.0,
Power Debug II, PowerDebug PRO,
PowerDebug E40 or PowerDebug X50
voltage range 1.8 to 5.0
This product is discontinued and not available for purchase.
Superseded by LA-3084 CombiProbe 2 for dsPIC Dual Core (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Package for CombiProbe 2 dsPIC Dual Core
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2768A JTAG Debugger for Synopsys ASIP Cores Add.
- LA-3743A Debugger for Armv8/Armv9-A/R/X Add.
- LA-3776A JTAG Debugger for Intel x86/x64 Add.
- LA-3750A Debug License for ARC® 32-bit Add.
- LA-2760A Debugger for dsPIC Add.
- LA-2751A JTAG Debugger for STRED Add.
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-3799X Trace License for TriCore ED
- LA-7844A Debugger for Cortex-M (Armv6/7/8-M) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7843A Debugger for Armv7-A/R Add.
- LA-3970X Trace Lic. for Intel® Processor Trace (COB)
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-7970X Trace License for Arm (Debug Cable)
- LA-2752X Trace License for STRED (Debug Cable)
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3741A Debug License for Hexagon Add.
