JTAG Debugger for JANUS (ICD)
OVERVIEW
JTAG Debugger for JANUS (ICD)
Product number:
LA-7739
On request, please contact Lauterbach
supports JANUS 2
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
requires Power Debug Module

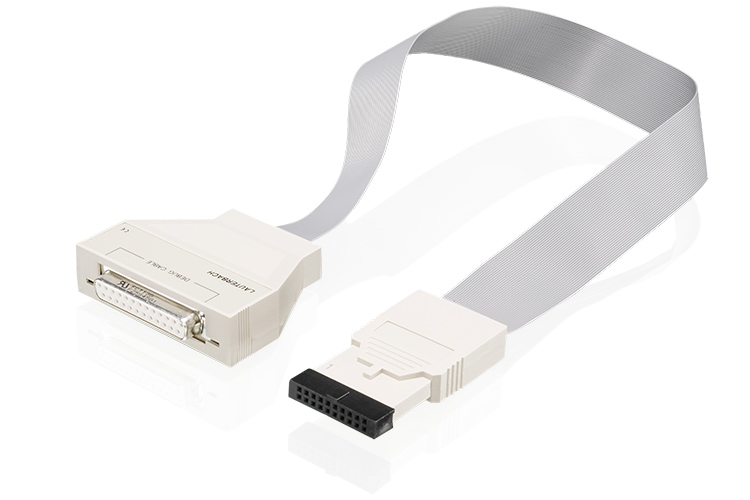

debug cable with 20 pin connector
This product has limited availability. Please contact local office.
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for JANUS (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
Available Converters
- LA-2729 Converter IDC20A to MIPI-10/20T
- LA-3881 Converter IDC20A to XILINX-14
- LA-7748 Converter IDC20A to TI-14
- LA-3880 Conv. ICD20A, MIPI-34, MIPI-60 to 2xMictor-38
- LA-2770 Converter IDC20A to MIPI-34 PowerTrace Serial
- LA-3833 Conv. IDC20A/Samtec40 HSSTP to Samtec40 HSSTP
- LA-3770 Converter IDC20A to MIPI-10/20D/34
- LA-3722 Converter IDC20A to Mictor-38
- LA-3780 Converter IDC20A to TI-14/TI-20-Compact
- LA-3863 Converter IDC20A to ALTERA-10/RISCV-10
- LA-3818 Converter 2xMictor38/IDC20A to MIPI-60
- LA-3809 Converter Mictor-38/IDC20A to MIPI-20T
