PPCCOP Debug Probe with MPC86xx License
OVERVIEW
PPCCOP Debug Probe with MPC86xx License
Product number:
LA-3297
New Product

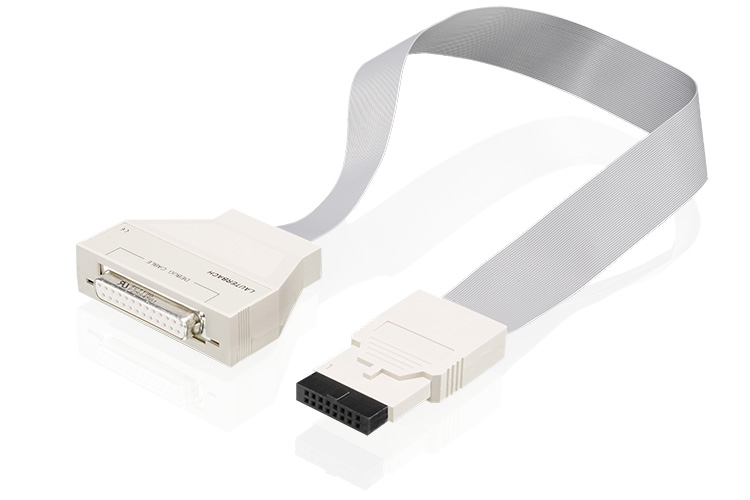

16-pin PPCCOP debug probe for MPC86xx CPUs
usable with a PowerDebug base module
supporting JTAG (1.8 - 5.0V).
Includes licenses to debug MPC86xx CPUs.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires a PowerDebug base module. Legacy
debug modules LA-7702/LA-7704 are not supported.
Concurrent debugging of both cores in dual-core chip
requires a license for multicore debugging (LA-7960X).
This product can be ordered now.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the PPCCOP Debug Probe with MPC86xx License
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7721X PPC603 Debug License Ext. (tool locked)
- LA-7719X MPC74xx Debug License Ext. (tool locked)
- LA-7734X MPC51xx/MPC52xx Debug Lic. Ext. (tool locked)
- LA-7960X License for Multicore Debugging (tool locked)
- LA-3794X QorIQ 64-Bit Debug License Ext. (tool locked)
- LA-3796X MPC85XX/QorIQ-e500 Debug Lic.Ext(tool locked)
- LA-3795X QorIQ 32-Bit Debug License Ext. (tool locked)
- LA-7729X MPC82xx/MPC83xx Debug Lic. Ext. (tool locked)
