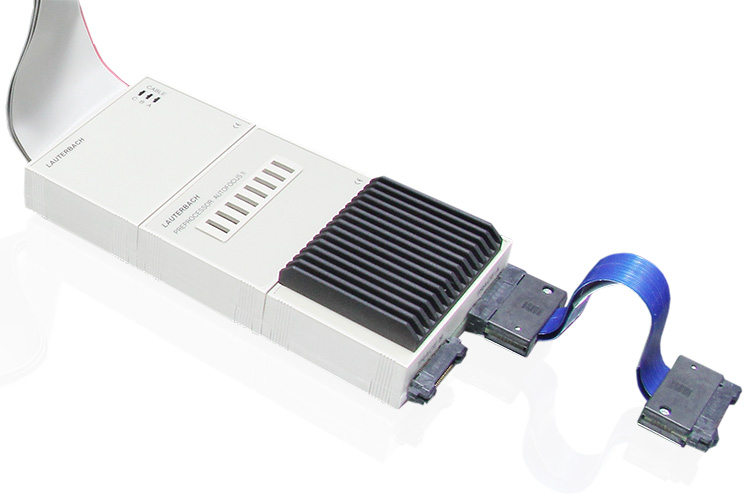

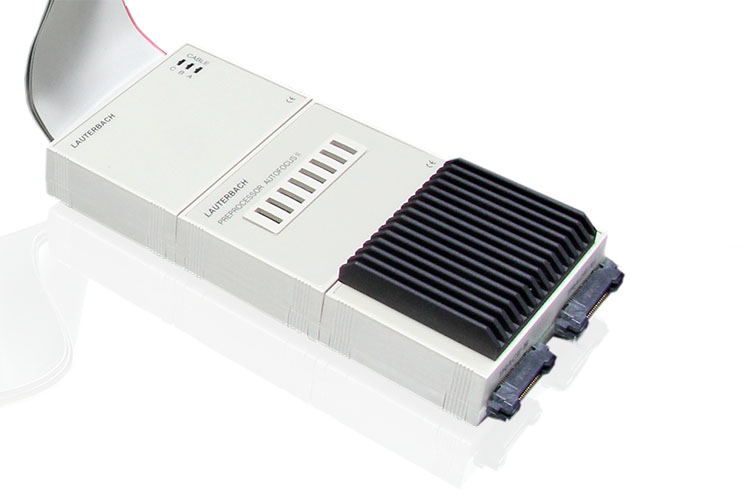

Trace for RISC-V via AUTOFOCUS II (PACK)
OVERVIEW
Trace for RISC-V via AUTOFOCUS II (PACK)
Product number:
LA-3300
tested for SiFive Nexus IP
tested for Tessent Embedded Analytics
(former UltraSoc) Trace Encoder IP
other IP on request
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)

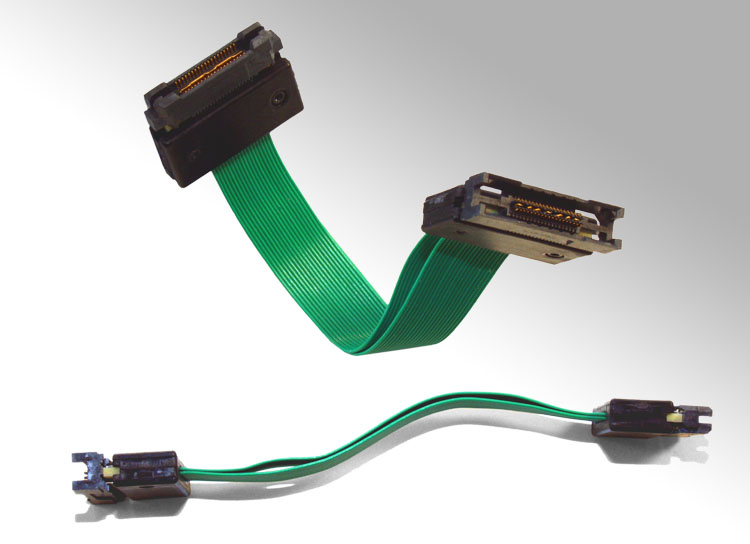

Connector: 2x38 pin mictor connector
Requires PowerTrace Version 6 or higher
or PowerTrace II / III
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Trace for RISC-V via AUTOFOCUS II (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3904A Trace License for TEAKLITE-III AUTOFOCUS II
- LA-3902A Trace License for SH2A, SH4, SH4A in AF II
- LA-7999A Trace License for StarCore AUTOFOCUS II
- LA-7979A Trace License for C6000 (AF-II/PTS)
- LA-7977A Trace License for Ceva-X (AF-II/PTS)
- LA-2901A Trace License for VSPA (AF-II/PTS)
- LA-3901A Trace License for MicroBlaze AUTOFOCUS II
- LA-3914A Trace License for ARC® (AF-II/PTS)
- LA-7970A Trace License for Arm (AF-II/PTS)
