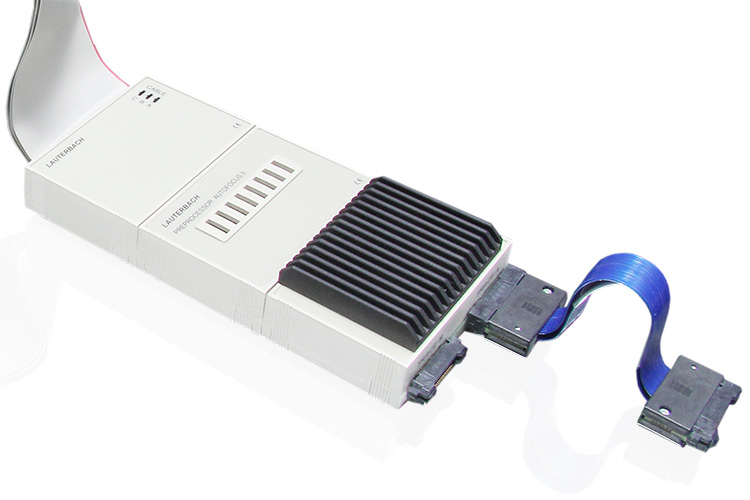

AutoFocus II Trace Probe for Xtensa®
OVERVIEW
AutoFocus II Trace Probe for Xtensa®
Product number:
LA-3312
Parallel Preprocessor for CoreSight Real-Time Trace for Xtensa
Includes connector cable.
Requires PowerTrace II / III, PowerTrace PX
or PowerTrace/Ethernet Version 6 or higher.
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 2x38 pin mictor connector
HS-Code / Tariff-Code: 90318080
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the AutoFocus II Trace Probe for Xtensa®
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2752A STRED Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3900A PPC4xx Trace License (trace tool)
- LA-3901A MicroBlaze™ Trace License (trace tool)
- LA-3904A TeakLite Trace License (trace tool)
- LA-3908A Beyond Trace License (trace tool)
- LA-3914A ARC® Trace License (trace tool)
- LA-3917A Nios® II Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
- LA-7973A SuperH (SH) Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
- LA-7999A StarCore Trace License (trace tool)
