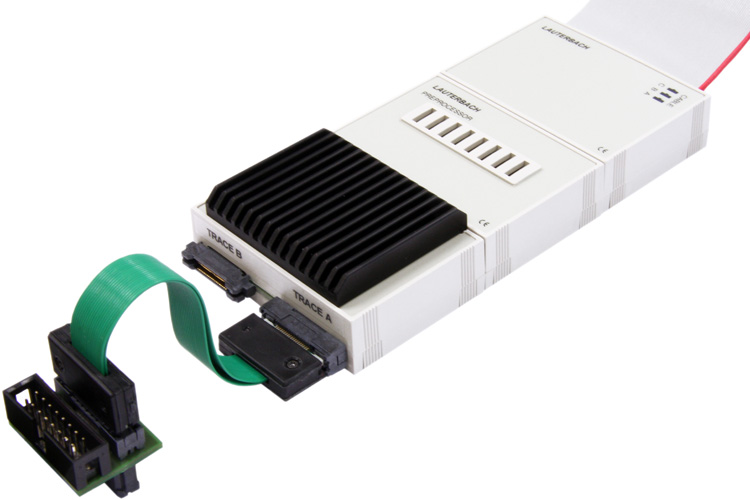

AutoFocus II Trace Probe for PPC4xx
OVERVIEW
AutoFocus II Trace Probe for PPC4xx
Product number:
LA-3351
New Product
Preprocessor for recording parallel traces,
including a license for decoding of traces
emitted by PPC4xx cores.

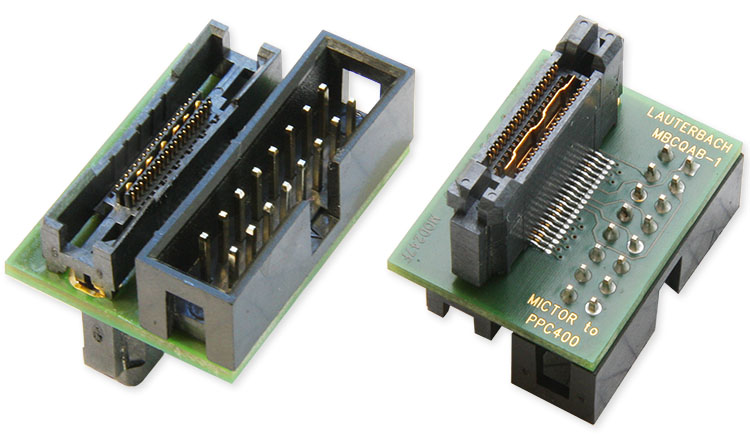

Includes connector cable and converter to
connect 16-pin PPC4xx debug probe.
Requires PowerTrace II / III, PowerTrace PX
or PowerTrace/Ethernet Version 6 or higher.
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Supports 1.2 to 3.3V - else contact support.
This product can be ordered now.
HS-Code / Tariff-Code: 90318080
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the AutoFocus II Trace Probe for PPC4xx
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2752A STRED Trace License (trace tool)
- LA-2754A Xtensa® Trace License (trace tool)
- LA-2761A C7000 Trace License (trace tool)
- LA-2767A RISC-V Trace License (trace tool)
- LA-2901A VSPA Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3901A MicroBlaze™ Trace License (trace tool)
- LA-3904A TeakLite Trace License (trace tool)
- LA-3905A RAM Trace Port (RTP) License (trace tool)
- LA-3908A Beyond Trace License (trace tool)
- LA-3914A ARC® Trace License (trace tool)
- LA-3917A Nios® II Trace License (trace tool)
- LA-7970A Arm® Trace License (trace tool)
- LA-7973A SuperH (SH) Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
- LA-7999A StarCore Trace License (trace tool)
