JTAG Debugger for MPC5200/MPC512x (ICD)
OVERVIEW
JTAG Debugger for MPC5200/MPC512x (ICD)
Product number:
LA-7734
Out of production
This product is still available under the new part number, LA-3293
(despite the "out of production" notice).

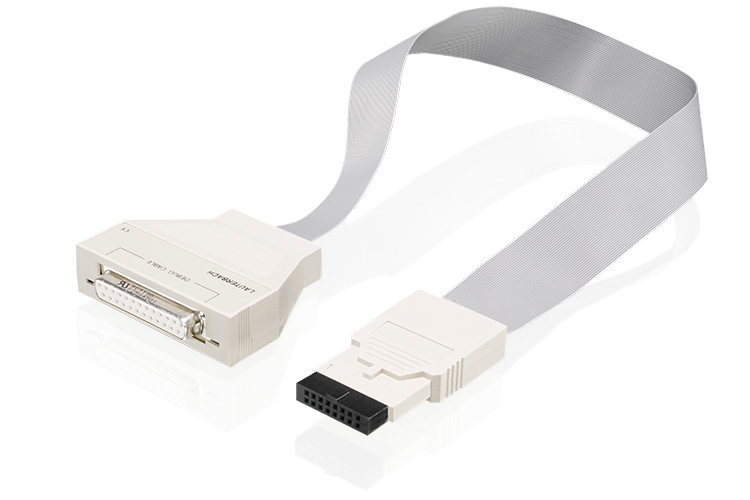

16-pin debug probe (1.8V to 5.0V.)
supporting MGT5100, MPC512x, MPC5200.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires a PowerDebug base module.
This product is discontinued and not available for purchase.
LA-3293 PPCCOP Debug Probe with MPC51xx/MPC52xx Lic.
HS-Code / Tariff-Code: 85480090
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for MPC5200/MPC512x (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3735X MPC86xx Debug License Ext. (tool locked)
- LA-3794X QorIQ 64-Bit Debug License Ext. (tool locked)
- LA-3795X QorIQ 32-Bit Debug License Ext. (tool locked)
- LA-3796X MPC85XX/QorIQ-e500 Debug Lic.Ext(tool locked)
- LA-7719X MPC74xx Debug License Ext. (tool locked)
- LA-7721X PPC603 Debug License Ext. (tool locked)
- LA-7729X MPC82xx/MPC83xx Debug Lic. Ext. (tool locked)
