JTAG Debugger for ARM10 (ICD)
OVERVIEW

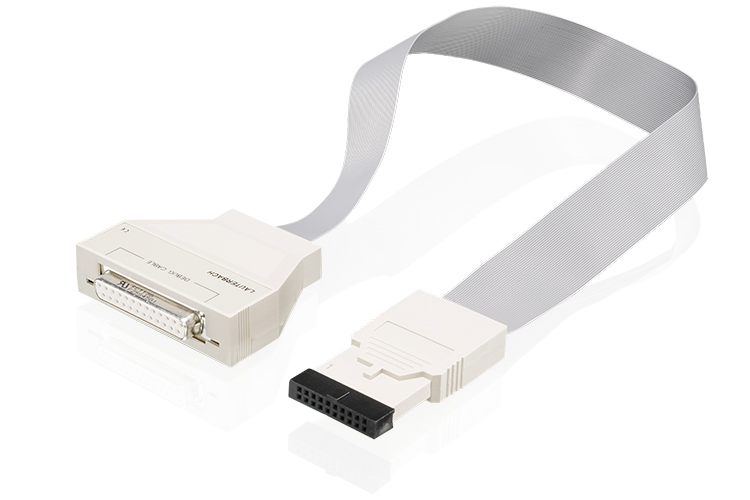

JTAG Debugger for ARM10 (ICD)
Product number:
LA-7744
On request, please contact Lauterbach
supports ARM10 (0.4 V - 5 V)
supports 5-pin standard JTAG, cJTAG and
Serial Wire Debug Port
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
requires Power Debug Module
cJTAG and SWD require
Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, PowerTrace, Power Debug II
or PowerDebug PRO
This product has limited availability. Please contact local office.
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for ARM10 (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7746X ARM7 Debug License Ext. (tool locked)
- LA-3778A APS Debug License (tool locked)
- LA-7845A StarCore Debug License (tool locked)
- LA-7844X Cortex-M Debug License Ext. (tool locked)
- LA-7830A C5500 Debug License (tool locked)
- LA-3750A ARC® 32-bit Debug License (tool locked)
- LA-7832A ZSP400 Debug License (tool locked)
- LA-7762X XScale Debug License Ext. (tool locked)
- LA-7831A C5400 Debug License (tool locked)
- LA-3747A UBI32 Debug License (tool locked)
- LA-7817A SH Debug License (tool locked)
- LA-7742X ARM9 Debug License Ext. (tool locked)
- LA-7960X License for Multicore Debugging (tool locked)
- LA-3712A ZSP500 Debug License (tool locked)
- LA-7838A C6000 Debug License (tool locked)
- LA-7843X Armv7-A/R Debug License Ext. (tool locked)
- LA-3760A Xtensa® Debug License (tool locked)
- LA-3756A AndesCore™ V3/V2 Debug License (tool locked)
- LA-3711A Ceva®-X™ Debug License (tool locked)
- LA-7847A C2000 Debug License (tool locked)
- LA-2540A RISC-V 32-bit Debug License (tool locked)
- LA-7774A TeakLite JAM Debug License (tool locked)
- LA-7970X Trace License for Arm (Debug Cable)
- LA-3743X Armv8/v9-A/R Debug License Ext. (tool locked)
- LA-7765X ARM11 Debug License Ext. (tool locked)
- LA-2541A RISC-V 64-bit Debug License (tool locked)
- LA-3844A TeakLite-4 Debug License (tool locked)
- LA-3741A Hexagon Debug License (tool locked)
- LA-3774A TeakLite-III Debug License (tool locked)
Available Converters
- LA-2729 Converter IDC20A to MIPI-10/20T
- LA-3881 Converter IDC20A to XILINX-14
- LA-7748 Converter IDC20A to TI-14
- LA-3880 Conv. ICD20A, MIPI-34, MIPI-60 to 2xMictor-38
- LA-2770 Converter IDC20A to MIPI-34 PowerTrace Serial
- LA-3833 Conv. IDC20A/Samtec40 HSSTP to Samtec40 HSSTP
- LA-3770 Converter IDC20A to MIPI-10/20D/34
- LA-3722 Converter IDC20A to Mictor-38
- LA-3780 Converter IDC20A to TI-14/TI-20-Compact
- LA-3863 Converter IDC20A to ALTERA-10/RISCV-10
- LA-3818 Converter 2xMictor38/IDC20A to MIPI-60
- LA-3809 Converter Mictor-38/IDC20A to MIPI-20T
