Preproc. for SHx (AUD) AUTOFOCUS II FLEX
Preproc. for SHx (AUD) AUTOFOCUS II FLEX

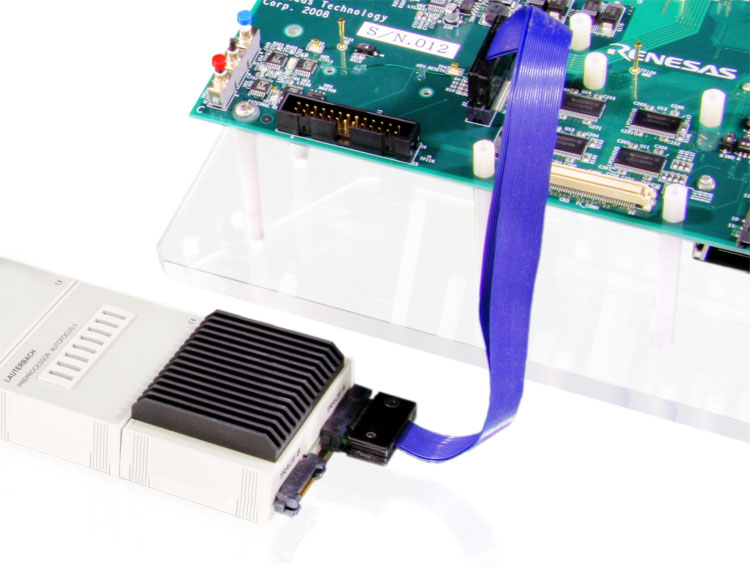

Preprocessor for AUD Real-Time Trace for SH2A,
SH4 and SH4A cores.
550 MHz clock speed.
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Supports 1.2 to 3.3V - else contact support.
Requires PowerTrace Version 6 or higher
or PowerTrace II / III.
Add converter LA-7819 to connect the 14-pin debug cable (LA-7758)
to the preprocessr, which is required, if there is no separate 14-pin
debug connector on your target board. (Not required when using the
20-pin debug cable (LA-7817)).
Voltage range 1.2V to 3.3V.
HS-Code / Tariff-Code: 90318080
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the Preproc. for SHx (AUD) AUTOFOCUS II FLEX
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-2752A STRED Trace License (trace tool)
- LA-3734A RH850 Trace License (trace tool)
- LA-3901A MicroBlaze™ Trace License (trace tool)
- LA-3904A TeakLite Trace License (trace tool)
- LA-7973A SuperH (SH) Trace License (trace tool)
- LA-7977A Ceva®-X™ Trace License (trace tool)
- LA-7979A C6000 Trace License (trace tool)
- LA-7999A StarCore Trace License (trace tool)
